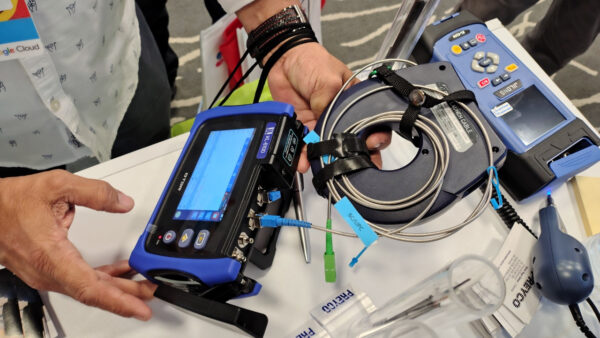

JILONG KL-6100 Fiber Monster OTDR

JILONG KL-6100 Fiber Monster OTDR

JILONG KL-6100 Fiber Monster OTDR

Ratings: QE2YB+QdE4J4wAAAABJRU5ErkJggg==QE2YB+QdE4J4wAAAABJRU5ErkJggg==QE2YB+QdE4J4wAAAABJRU5ErkJggg==QE2YB+QdE4J4wAAAABJRU5ErkJggg==QE2YB+QdE4J4wAAAABJRU5ErkJggg==

JILONG KL-6100 Fiber Monster OTDR

JILONG KL-6100 Fiber Monster OTDR

JILONG KL-6100 OTDR is widely used for FTTx network installation and troubleshooting. accessnetwork testing (P2P), passive optical LAN (POL), cable TV (CATV) and hybrid fiber coaxial (HFC)network testing, as well as FTTA and Distributed Antenna System (DAS) installation.

Can save SOR format andsupport host computer viewin
Built-in post-processing software saves OTDR measurement results as SOR filesstoring over 1,000 files.
Smart Map Graphical Links
Smart Map makes OTDR test results graphical, intuitively displaying fiber loss, breakpoints, and fault locations. Clearly view test results at a glance, improving detectionefficiency and speeding upaccurate maintenance.
Lighting lamps makework easier
High-brightness lighting design for convenientline inspection in dim environments,
Stable support for convenient desktopoperation and versatile scenario use
The bracket can support the product on the platform, reducethe measurement error caused by equipment shaking duringoptical fiber measurement, and improve the measurement accuracy
Replaceable universal interfacesupports SC/FC/ST adapters

JILONG KL-6100 Series OTDR KL-6100-S2 1310/1550nm 31/29dB 4.3 Inch Touch Screen Fiber Optic Mini OTDR

Core features
• Smart link diagram• 6000mAh large capacity battery• Maximum dynamic range: 31dB• ≤1.5m event blind zone, ≤5m attenuation blind zone • Measures continuous events on 8x3m optical fiber jumpers in fully   automatic mode (industry benchmark)
Recommended Products

Notes:

★①. Minimum pulse width, return loss: ≥55 dB

(≥40 dB for 850/1300 nm), group refractive index: 1.5, the unsaturated peak

level <1.5dB.

★②. Minimum pulse width, group refractive

index: 1.5, the backscatter level is >0.5dB of the normal level. For SMF, at

1310nm, return loss: ≥55dB. For MMF, at 850nm, return loss: ≥40dB.

★③. New Battery

All specifications valid

at 23°C ± 2°C (73.4°F ± 3.6°F) unless otherwise specified.
